| model | TOANO |
| engine | 4F25TC2 |
| emission | EURO 5 |
| volume l. / power (HP) | 2.499 / 157 |
| Max torque (Nm/rpm) | 420/2200 |
| Mechanical gearbox | 6MT (ZM6T82) |
| Full length/width/height (mm) | 7000x2090x3300 |
| Count base | 3750 |
| Cargo compartment size (mm) | 1600x1785x1950 |
| Number of seats | 3+3 |
| Total allowable weight (kg) | 3500 |
| brake system | ABS+EBD |
| Fuel tank capacity | 80 |
| tires | 215/75R16 4+1 |
| Electric windows / air conditioner | Yes |
| airbags | Yes |
| Cart brand / model | KLUBB/KL 32/France |
| working height (m) | 12.5 |
| Basket length/width/height (mm) | 1100x1090x680/580 |
| Basket load capacity (kg) | 200 |
| Turret rotation | 3600 |
| Cart management | Joystick (one hand principle) |
| control panel | on the cart + platform |

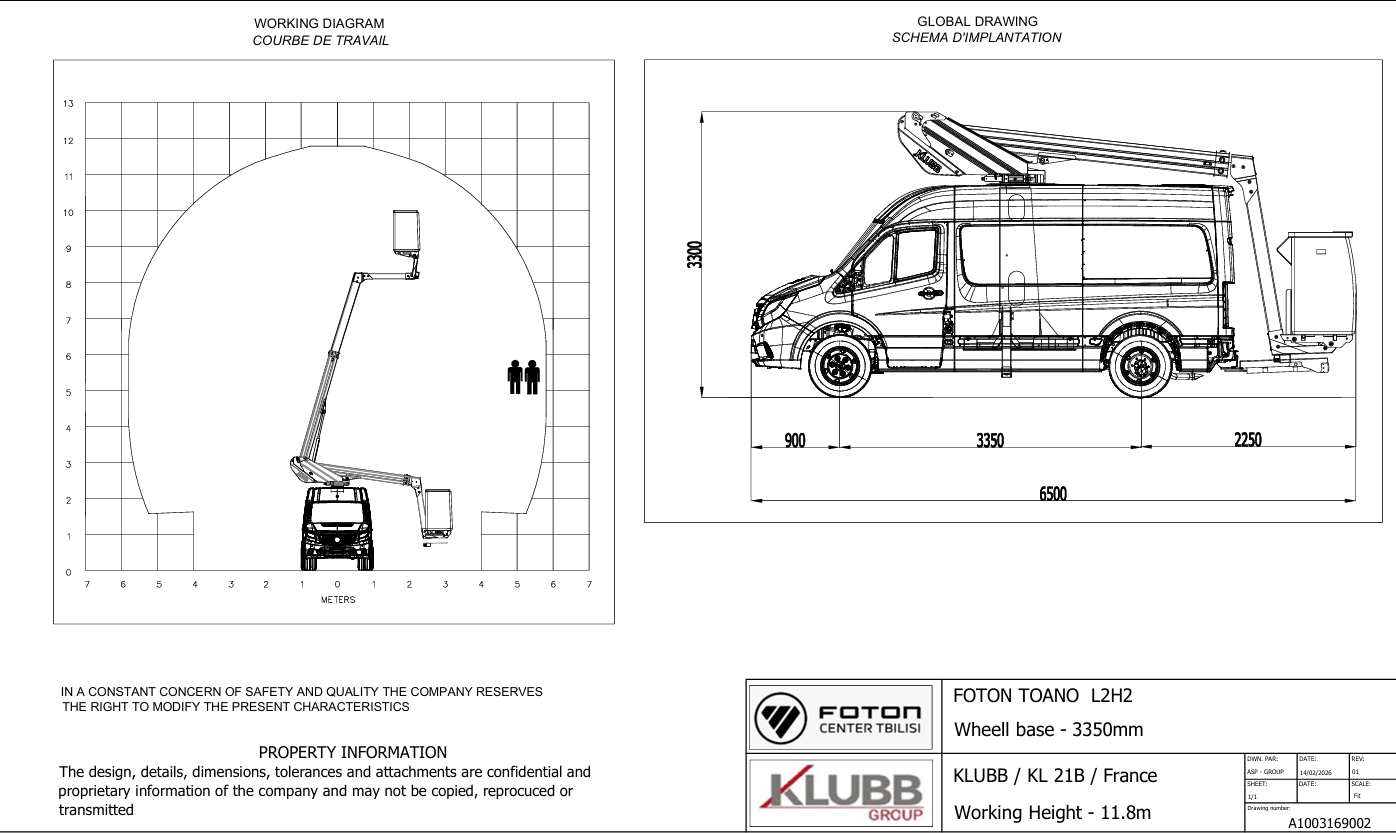

FOTON TOANO 3+3 Seats KLUBB Aerial Platforms
| model | TOANO |
| engine | 4F25TC2 |
| emission | EURO 5 |
Description
